Simple evaluation board for ATmega162 + 32KB external RAM

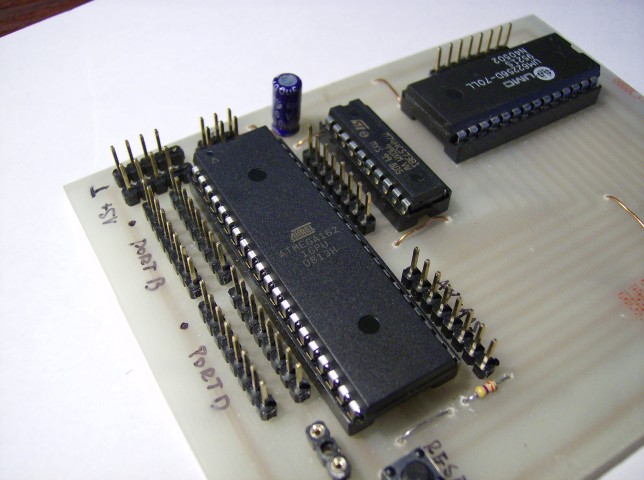

When internal RAM is not enough to application requrements, external RAM can be connected to some AVR devices, such as ATmega162. This board has all necessary stuff to run ATmega162 with external RAM : address latch, 32KB SRAM chip and standard peripherals such as : crystal, ISP connector, reset switch and I/O connectors.

Click to zoom  Click to zoom

Download
  Schematic

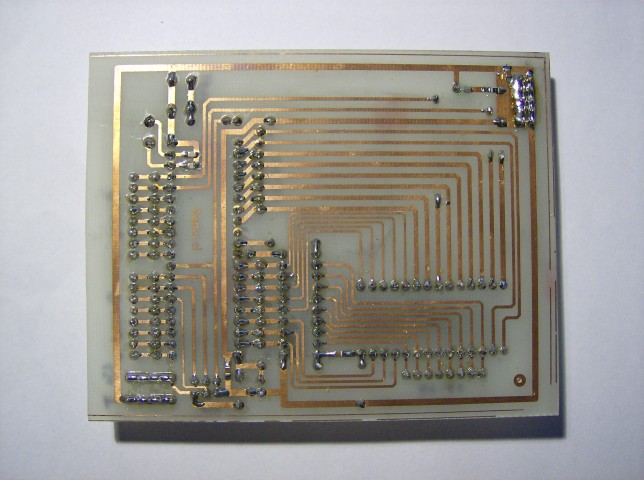

  PCB Bottom Layer
  PCB Wire Bdridges
  PCB Top Overlay

Board require external +5V regulated power supply. ISP connector is Atmel standard.
